Electrical Pro
Electrical Pro
by Comoving Magnetics
free
not available

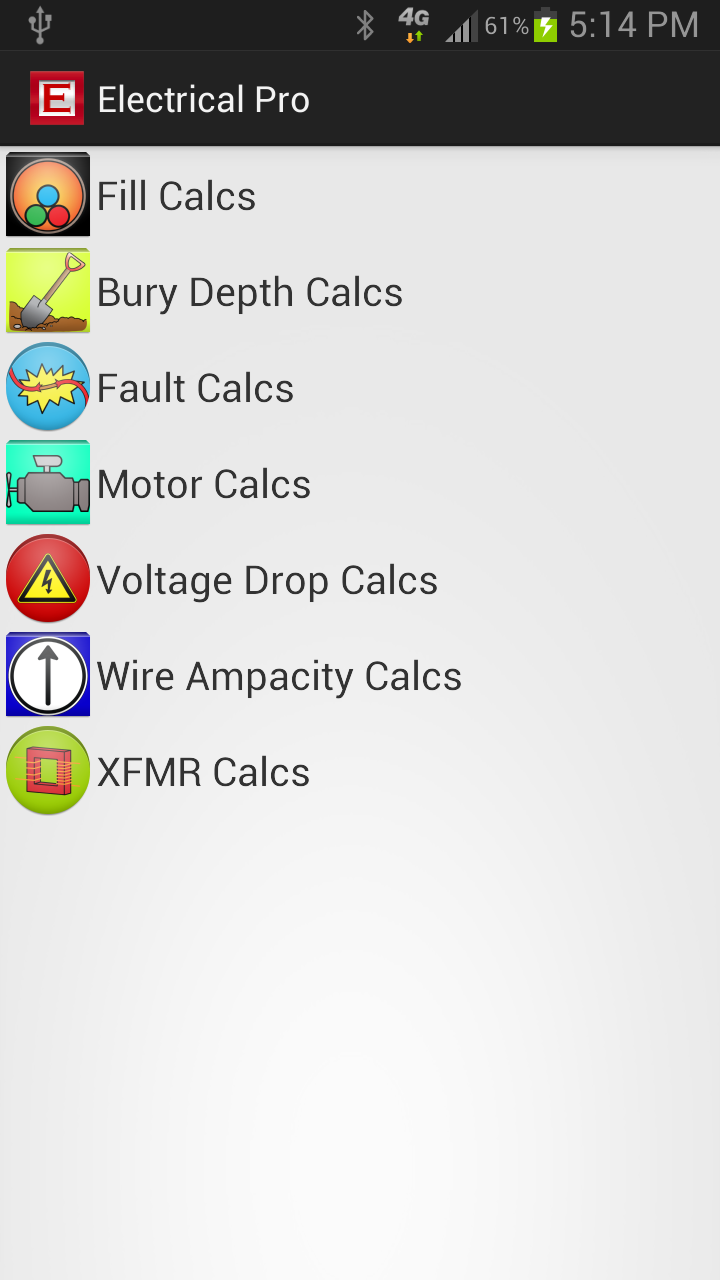

A great tool for electrical engineers and electricians.This app is a compilation of five sub apps that use the 2008/2011/2014 National Electric Code (NEC).
Bury Depth:This will calculate the depth needed to bury a line.
Box Conduit Fill Pro:This will calculate:The maximum wires in a conduitThe minimum box size The minimum conduit/nipple size
Fault Calculator Pro:This will calculate:A fault over a lineA fault through a XFMR The bracing de-rate factor for a utility XR ratio
Motor Calculations:Locked Rotor AmpsNEC Motor Table Look-up
Voltage Drop Pro:This app will calculate:The voltage/percent drop for a wireMinimum wire size for a given percent dropMax wire length for a given percent dropMax amps for a given percent dropThe impedance of the wire based on the inputted valuesClick the green "Voltage" label for custom voltages
Wire Ampacity Pro:This app will calculate:The minimum wire or max amps based on the inputted ampacity for low and medium voltages, The equipment and service ground size A residential feeder sizeClick the green "Ampacity" label to switch between minimum wire and wire ampacity
Note: This app uses the internet for the Google Licensing Service
This app uses the 2008/2011 NEC to calculate values.
Now you can save initial values to be used in the calculations!
Where length is inputted you can use your GPS from your phone to get an approximate distance (only as accurate as the GPS in your phone).
This app gives you the ability to email the answers calculated to yourself and others.
See the about menu for additional functionality.
Please e-mail any questions, comments or concerns. If you like the app please rate it, if not please send an e-mail and let us know why so that we can make the necessary changes.
